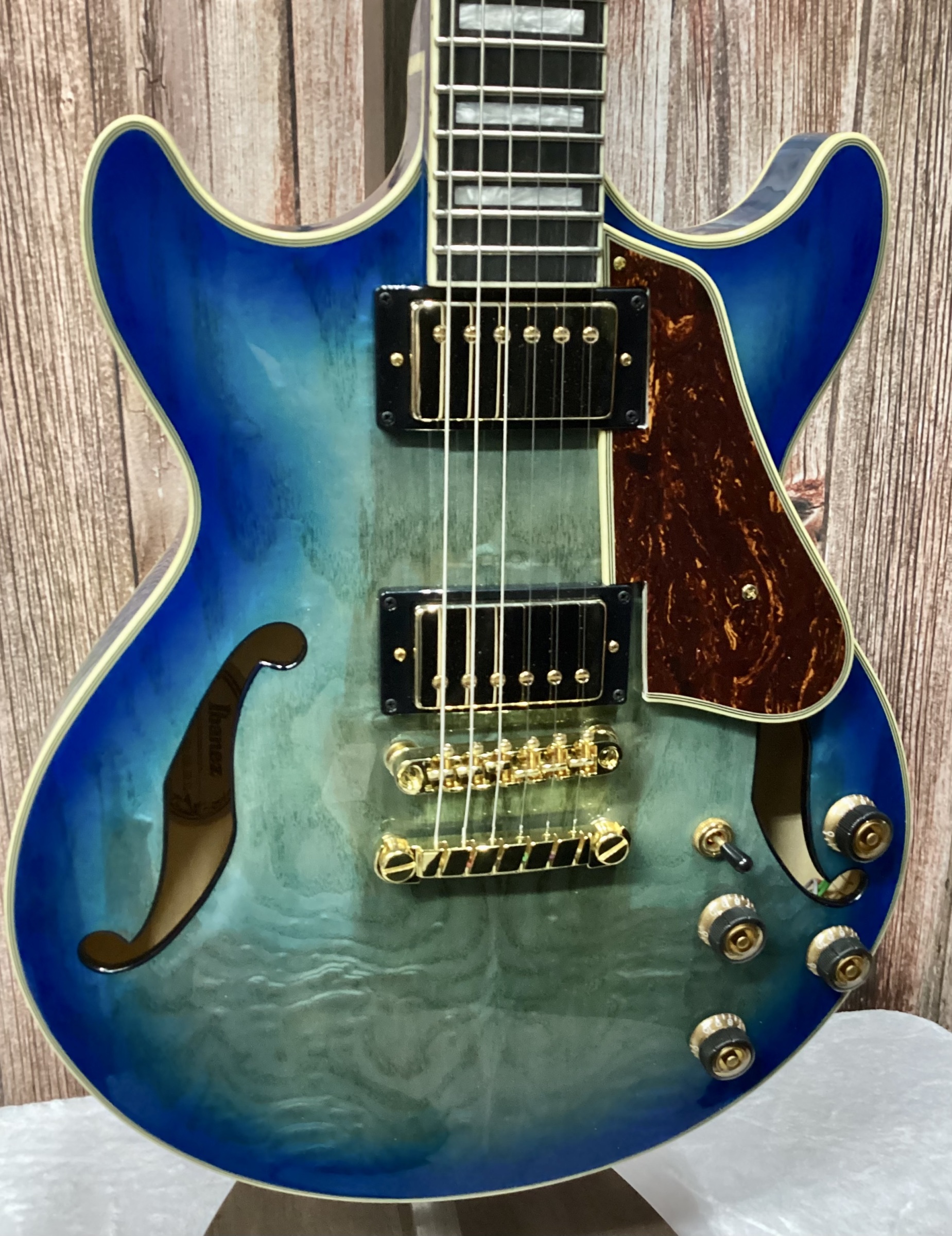

Unleash your musical potential with the Ibanez AM93QA Jet Blue Burst, a stunning semi-hollow electric guitar designed for discerning musicians. This masterpiece features a Quilted Ash top, back, and sides, delivering a bright, resonant tone with impressive sustain. The 3pc Nyatoh/Maple neck ensures rich mid-low frequencies and superb resonance, while the Macassar Ebony fretboard offers a quick response and tight lows. Equipped with Super 58 pickups, this guitar provides a vintage tone with moderate output, perfect for jazz, blues, and rock enthusiasts. The Gibraltar Performer bridge enhances sustain and tuning stability, and the Quik Change III tailpiece makes string changes a breeze. With its elegant Jet Blue Burst finish and gold hardware, the AM93QA is as visually captivating as it is sonically impressive. Elevate your performance with this exceptional instrument.
-
SPECS
- neck type
- AM Expressionist3pc Nyatoh/MapleSet-in neck
- top/back/side
- Quilted Ash top Quilted Ash backQuilted Ash sides
- fretboard
- Bound Macassar Ebony fretboardAcrylic block inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- Gibraltar Performer bridge
- string space
- 10.5mm
- tailpiece
- Quik Change III tailpiece
- neck pickup
- Super 58 (H) neck pickupPassive/Alnico
- bridge pickup
- Super 58 (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL140
- string gauge
- .010/.013/.017/.030/.042/.052
- hardware color
- Gold
- neck type
-
NECK DIMENSIONS
-
- Scale : 628mm/24.7"
- a : Width 43mm at NUT
- b : Width 57mm at 22F
- c : Thickness 21mm at 1F
- d : Thickness 24mm at 9F
- Radius : 305mmR
-
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length 17 5/8"
- b : Width 14 1/2"
- c : Max Depth 2 5/8"
-
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
Features
Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.
3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Quik Change III Tailpiece
The Quik Change III tailpiece enables faster and easier string changing.
Super 58 Pickups
Super 58 pickups feature moderate output and vintage tone.
Quilted Ash top / Quilted Ash back and sides
Quilted Ash wood delivers a pleasant brightness and rich sustain.
