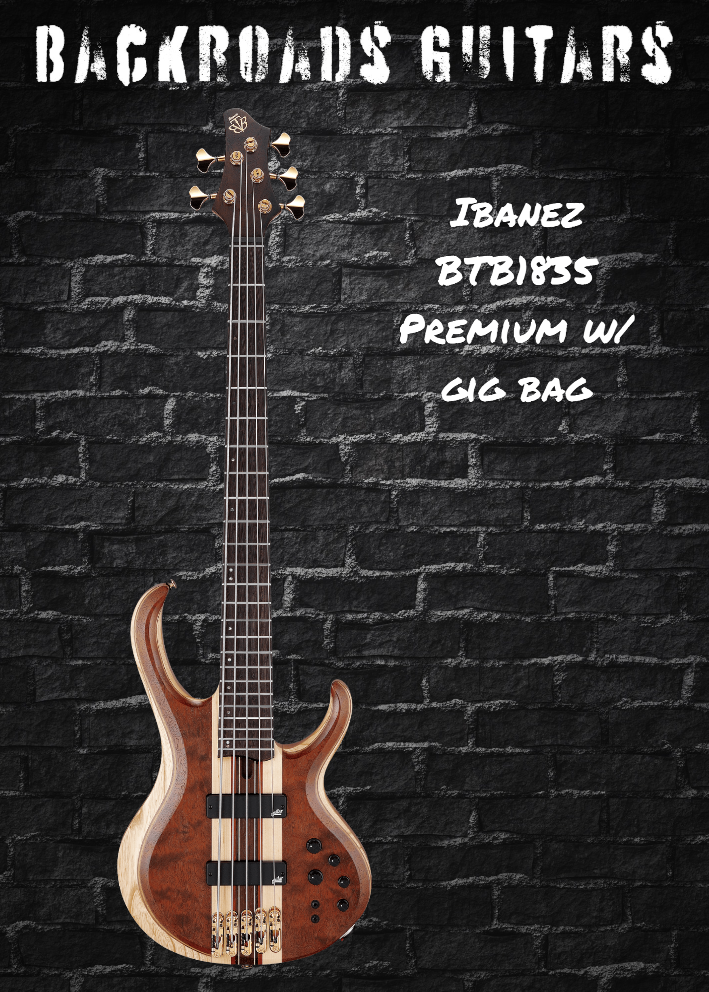

Ibanez BTB1835 Premium w/gig bag
|
|
|
|
|
|
| Quantity: | |
|
|
|
Add to Cart | |
;){kind=link}
-
SPECS
- neck type
- BTB59pc Maple/Bubinga/Panga Panga w/Graphite reinforcement rodsNeck-through
- top/back/body
- Bubinga topBubinga backAsh wing body
- fretboard
- Bound Panga Panga fretboardAbalone off-set dot inlay
- frets
- Medium Stainless Steel fretsPremium fret edge treatment
- number of frets
- 24 (+ zero fret)
- bridge
- MR5S bridge
- string space
- 19mm
- neck pickup
- Aguilar® DCB neck pickup Passive
- bridge pickup
- Aguilar® DCB bridge pickup Passive
- equaliser
- Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch
- factory tuning
- 1G,2D,3A,4E,5B
- strings
- D'Addario® NYXL45130SL
- string gauge
- .045/.065/.80/.100/.130
- hardware color
- Gold
- neck type
-
NECK DIMENSIONS
-
- Scale :
- 889mm/35"
- a : Width
- 47mm at NUT
- b : Width
- 76mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22mm at 12F
- Radius :
- 400mmR
- Scale :
-
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the end of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 700Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.
-
FREQUENCY RESPONSE
OTHER FEATURES
- Gig bag included
- Gotoh® machine heads
Features
Aguilar® DCB pickups
The Aguilar® DCB pickups use the dual-ceramic bar design to capture all the detail and character of your tone. The pickup’s uniform magnetic field ensures that no information is lost, making this a great pickup for dynamic playing styles.
